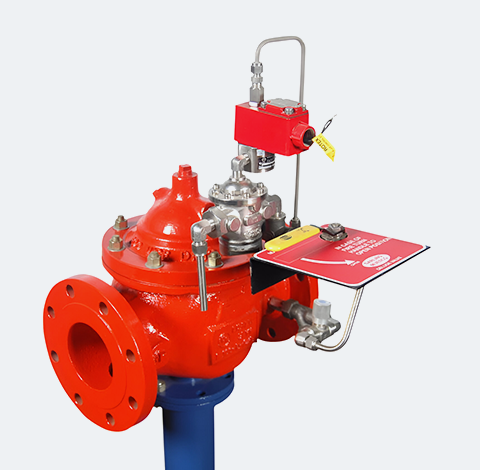

V-MAK Deluge Valves, Models VT100D-P (dry trim – pneumatically actuated) and VT100D-A (wet trim – hydraulically actuated), are engineered for reliable and rapid response in fire protection systems. All control trims are factory-assembled and pre-piped on the valve body for easy installation, reduced commissioning time, and assured performance.
Each valve assembly is equipped with a manual station, test trim, manual override, and drain line. The valve is designed to open instantly upon receiving an electrical signal to the solenoid valve or upon loss of control pressure, ensuring immediate water discharge to the fire protection network. The pilot system can be operated hydraulically, pneumatically, or manually, providing exceptional versatility for varied application requirements.
| Size Range | 50 NB to 400 NB |
|---|---|
| Flow Range | Up to 70°C / 160°C Maximum |
| Pressure Range | Up to 20 Kg/cm² |
| Fluid Supported | Water |
| Construction Materials | Ductile Iron, Cast Steel, Stainless Steel |
| Trim Options | Dry trim (Pneumatic actuation), Wet trim (Hydraulic actuation), Electrical trim (Solenoid operated) |
| Control Features | Manual station, Test trim, Manual override, Drain line |
| Application | Fire protection systems in industrial plants, marine facilities, and infrastructure projects |
