Pneumatic & Motorised Control PCV-179

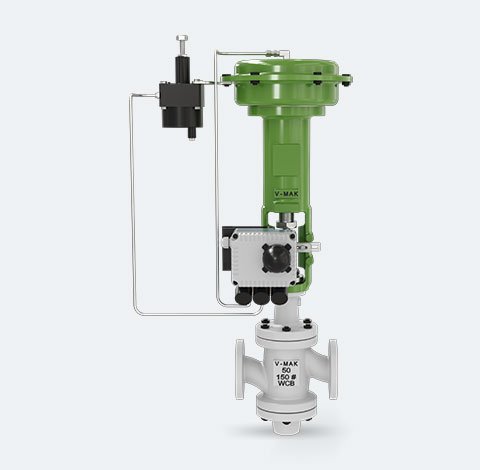

PCV-179 Pneumatic Control Valve

Out-Flow Series 179, Globe type, Single Seated, Top & Bottom -guided, Single Spring &diaphragm actuated throttling/ on-off type Pneumatic Control Valve.

Features

  • Top & Bottom guiding extends range of applications by eliminating the side thrust effect of pressure Drop across the plug.
  • This Valves are designed to control fluid flow at high pressure.
  • This model can be used in throttling or on-off services to handle air water, steam, gasoil and other fluids in processes having wide flow range requirement. This design provides tight shutoff capability for such processes.



Specifications

Size Range 25mm to 300mm
Pressure Rating 150#, 300#, 600#, 900# & 1500#
M.O.C. Carbon Steel/ Stainless Steel /Alloy Steel
Trims Stainless Steel / Monel/ Soft Seated.
Characteristic Liner/ Equal 9%/Quick Open / Friction Element
End Connection Flanged end/ Butt weld end
