Automatically reduces a higher inlet pressure to constant lower
outlet pressure.

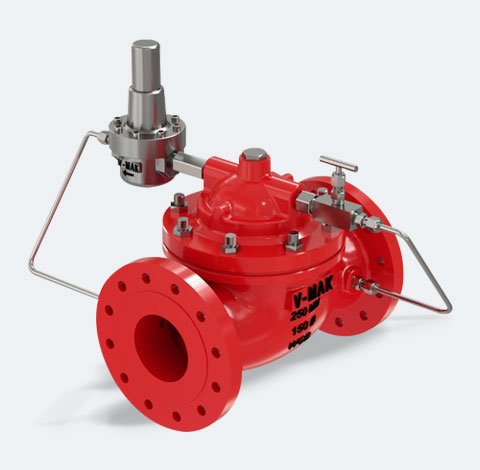

The valve consists of a main valve and a VT 15 pressure
reducing control pilot. Slight changes in downstream pressure acts
on topside of control diaphragm causing main Valve to counteract
pressure changes and hold a constant outlet pressure.
The regulator will reduce the upstream pressure to a constant
downstream pressure regardless of the change in flow rotes/or
inlet pressure. The pilot is a Normally - Open valve that senses the
downstream pressure.
Spring Range : Standard : 20-175 psig. Optional : 5-35 psig.
| Size | 25NB - 400NB |
|---|
