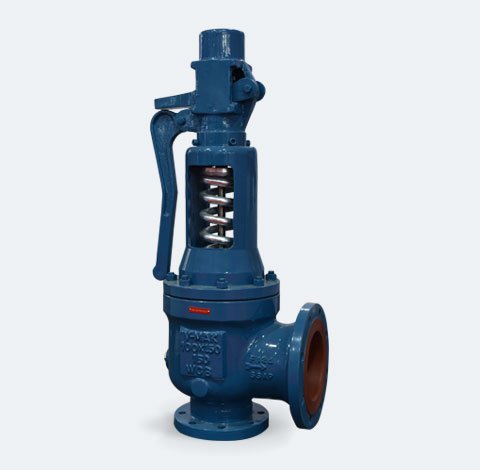

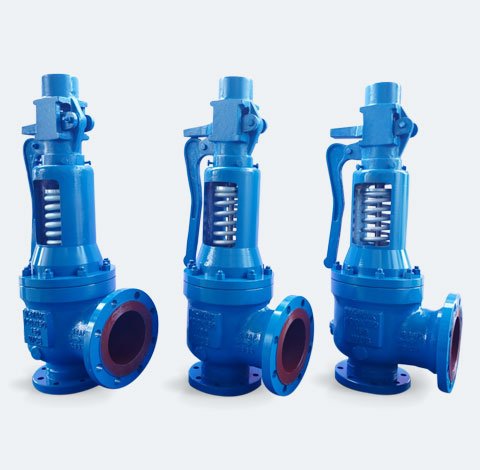

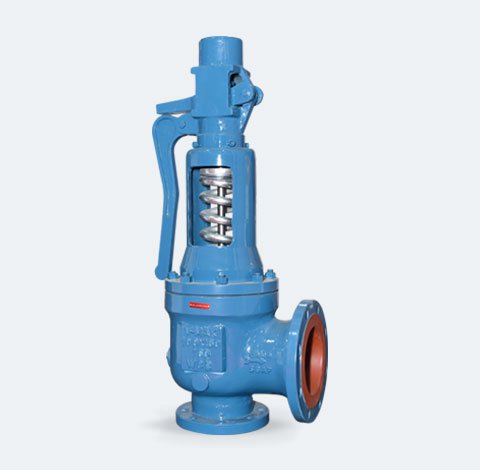

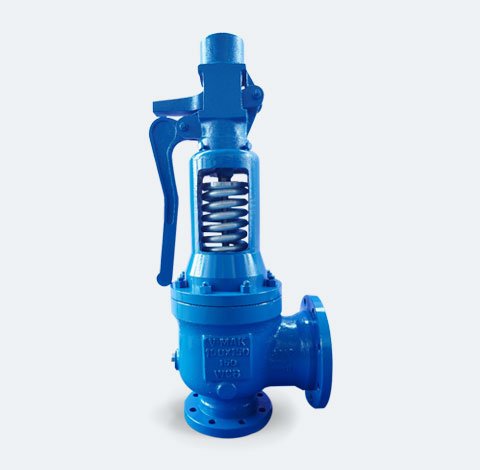

Open Bonnet, Conventional Design, Open Cap with Lever. Designed as per API 526/API 520 and also as per ASME Section VIII. Ideally suitable for Steam Service. Set pressure varies from 0.7 kg/cm' to 110 kg/cm'. More then 5000 valves installed on boilers across the country.
| Valve Size | 25 x 50NB to 250 x 350NB |
|---|---|
| Rating | BS 10 Table H, Class 150 to Class 900 |
| Orifice Size | G(20.0 mm) to V(181.0mm) |
| End Connection | Flanged |
| Material | Carbon Steel, Stainless Steel & Alloy Steel |
