Pneumatic Control Valve

Pneumatic Control Valve

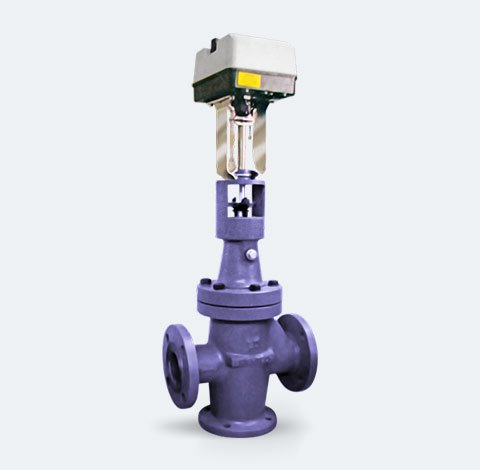

out-flow PCV-197, Globe type, Skirt and Top guided, Double seated, Single Spring and diaphragm [ for Pneumatic] /Motorized Operated, three-way Mixing & Diverting type control valve.

Features

  • The model PCV-197, three-way valves are used mainly for mixing of two fluid media.
  • One medium enters the valve body above the upper seat ring, the second below the lower seat ring. Percentage of each medium is controlled by varying the position of theinner valve. As the inner valve approaches a seat ring the flowing area is reduced. mixedmedia flows out of the valve through a common port.
  • It is also used as diverting [ by passed] the excess flow of thermic fluid, Steam, Coolingwater etc.



Specifications

Size Range 25mm to 150mm
Pressure Rating 150#, 300#, 600#
M.O.C. Carbon Steel/ Stainless Steel /Alloy Steel
Trims Stainless Steel/ Monel/ Soft Seated.
Characteristic Liner / Equal %/Quick Open
End Connection Flanged end
