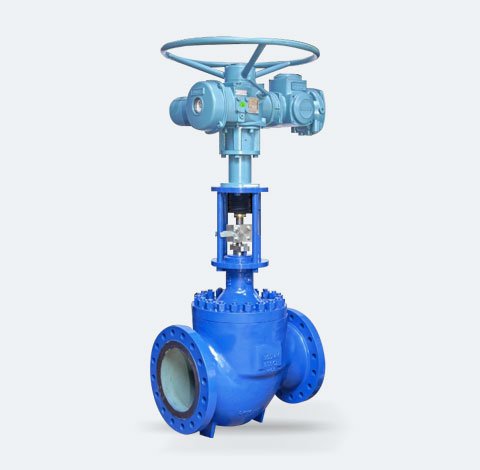

Motorised Control Valve

Motorised Control Valve

out-Flow Series -187, Globe type, Double Seated, Top & Bottom -guided, Single Spring& diaphragm actuated, throttling / on-off type Pneumatic Control Valve.

Features

  • Top & Bottom guiding extends range of applications by eliminating the side thrust effect of pressure drops across the plug.
  • Double seated design permits control of higher differential pressure and increase valve capacity.
  • Air to open or air to close valve action is obtained by either reversing the body and trim or reversing actuator. Valve body and trim can be easily reversed in the field without additional parts.
  • This mode can used in throttling or on-off services to handle air water, steam, gas, oil and other fluids in processes having wide flow range requirement.



Specifications

Size Range 25mm to 400mm
Pressure Rating 150#, 300#, 600#, 900# & 1500#
M.O.C. Carbon Steel/ Stainless Steel /Alloy Steel
Trims Stainless Steel/ Monel/ Soft Seated.
Characteristic Liner/ Equal %/ Quick Open/%V
End Connection Flanged end/ Butt weld end,
